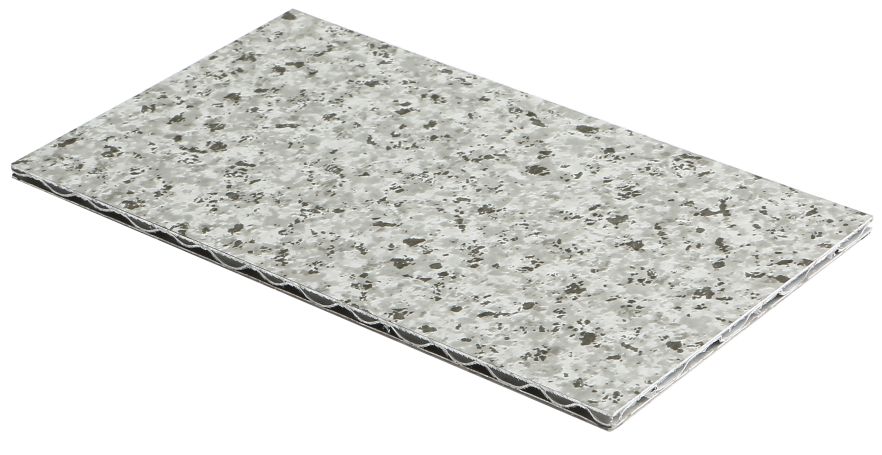

Stone color aluminum core panel
ACEBOND Aluminum core composite panel consists of an embossed aluminum core ( manufactured from different thickness Aluminum sheet ), bonded between two Aluminum sheets . It is an ASP which is light-weight but very stiff and strong .It is A2 Fireproof Panel .
The interlayer is non-combustible aluminum sheet, which has excellent ability in fire resistance. Also mineral material enables ACP to have high peel strength and excellent impact resistance.

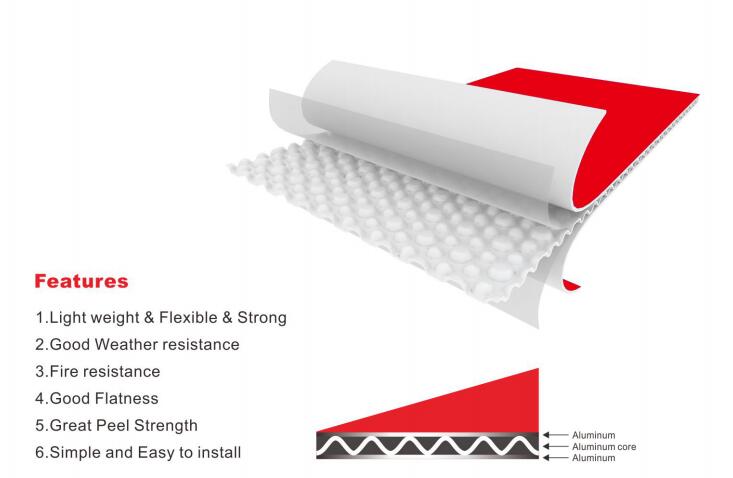

Structure:
Specification:
Aluminum skin thickness:
0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,etc
Total panel thickness: 3mm,3.5mm,4mm, etc
Width:1000mm,1200mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm,etc
Length: Up to 6500mm
Standard size: 1220mm(Width) ×2440mm(Length)
Non-standard sizes and special colors are available depending on customers’ offers
Available Colors:
We can produce all colors on all professional color cards
Characteristics:
1) Excellent fireproof property
2) Super peeling strength
3) Perfect cold resistance performance
4) Excellent surface flatness and smoothness
Certificate & Test Report:
1) EN13501-1 Test Report

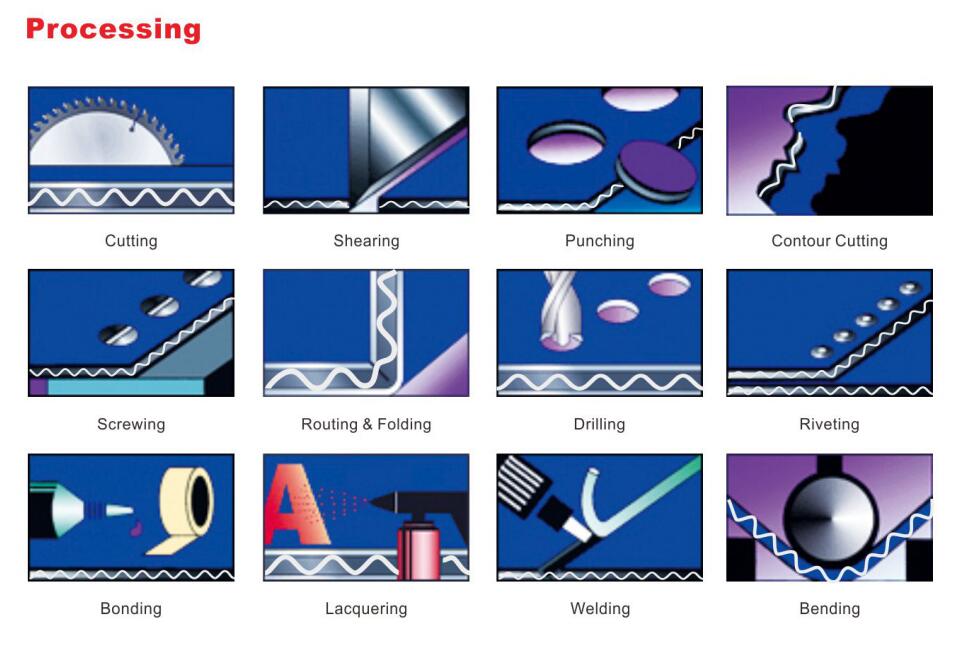

Product processing
OEM SERVICE PROCESS
1.Negotiation
We need to talk about the project requirements, to determine the order details.
2.R&D Samples
In order to ensure your interest, we will provide you samples. R & D and production of samples takes about 3-5 days by air delivered to you.
3. Material Procurement
If the sample is satisfied, We will take 12-18 days for production preparation, will be strictly in accordance with the need to control the quality of raw materials.

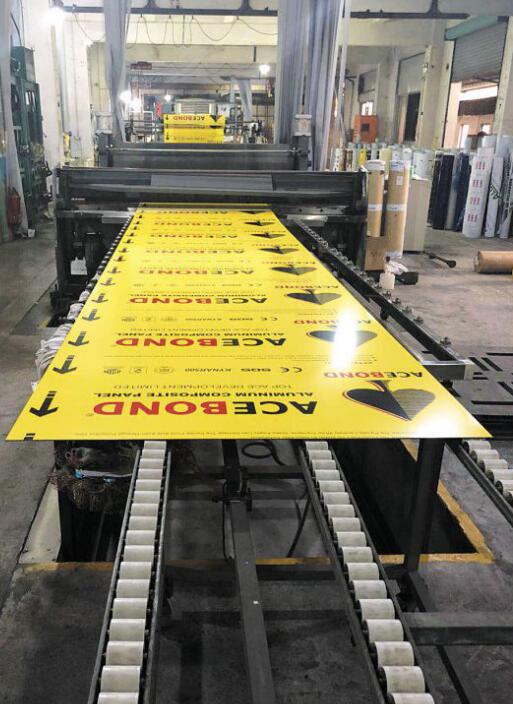

4. Mass Production
ISO9001:2000 & ISO14001 Standardized and automated production lines to ensure product quality and accurate delivery, Generally will be completed in 10 days.
5. Inspection & Traceability
We will ship the product before testing, photographed and retained samples for quality traceability.
6. We work with major shipping companies more than 10 years, will give you a reasonable freight and best service.
Stone color aluminum core panel
ACEBOND Aluminum core composite panel consists of an embossed aluminum core ( manufactured from different thickness Aluminum sheet ), bonded between two Aluminum sheets . It is an ASP which is light-weight but very stiff and strong .It is A2 Fireproof Panel .
The interlayer is non-combustible aluminum sheet, which has excellent ability in fire resistance. Also mineral material enables ACP to have high peel strength and excellent impact resistance.
Structure:
Specification:
Aluminum skin thickness:
0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,etc
Total panel thickness: 3mm,3.5mm,4mm, etc
Width:1000mm,1200mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm,etc
Length: Up to 6500mm
Standard size: 1220mm(Width) ×2440mm(Length)
Non-standard sizes and special colors are available depending on customers’ offers
Available Colors:
We can produce all colors on all professional color cards
Characteristics:
1) Excellent fireproof property
2) Super peeling strength
3) Perfect cold resistance performance
4) Excellent surface flatness and smoothness
Certificate & Test Report:
1) EN13501-1 Test Report
Product processing
OEM SERVICE PROCESS
1.Negotiation
We need to talk about the project requirements, to determine the order details.
2.R&D Samples
In order to ensure your interest, we will provide you samples. R & D and production of samples takes about 3-5 days by air delivered to you.
3. Material Procurement
If the sample is satisfied, We will take 12-18 days for production preparation, will be strictly in accordance with the need to control the quality of raw materials.
4. Mass Production
ISO9001:2000 & ISO14001 Standardized and automated production lines to ensure product quality and accurate delivery, Generally will be completed in 10 days.
5. Inspection & Traceability
We will ship the product before testing, photographed and retained samples for quality traceability.
6. We work with major shipping companies more than 10 years, will give you a reasonable freight and best service.
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
