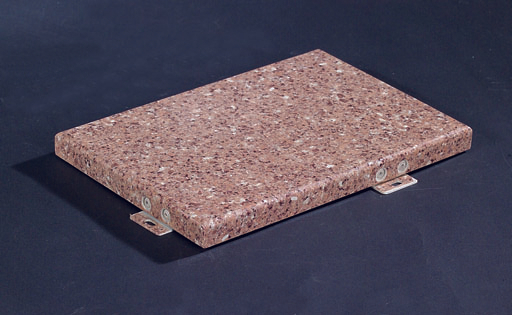

Wooden or Stone color Aluminum solid panel
Aluminum solid panel is made from high grade of aluminum metal alloy to make flat, angled, curved, round and various other complex shapes. Its regular thickness are 2.0mm, 2.5mm, 3.0mm, and 4.0mm. model 3003 and phase H24 or high class aluminum , the custom max dimension is 1220x2440 (mm). It is composed of plate, reinforcement bars and corner racks. The corner racks can be shaped from plate or punched or riveted at the edge. The reinforcement bars are soldered on back of plate to reinforce intensity and hardness of whole pane, this structure gives the panel better flatness and shock resistance as well as the long lifetime. If you want it to be sound and thermal isolation, we can add sound and thermal isolating material inside the panel.
Wooden or stone color Fluorocarbon aluminum soild panel has been widely used due to its superior weather resistance, corrosion resistance, light and beautiful quality and convenient installation. The excellent environmental and plasticity of fluorocarbon aluminum veneer is irreplaceable for other building materials,...

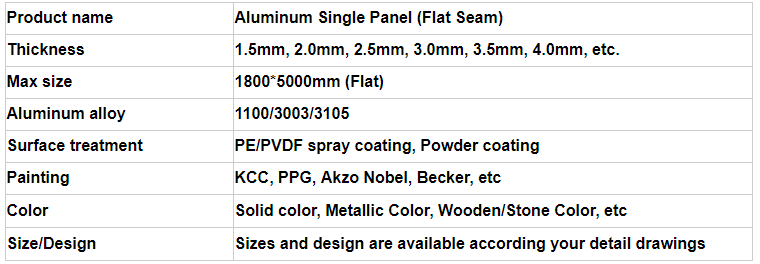

Specification:
ADVANTAGES
1、The hardness is up to Mohs’ scale 6.0，higher than steel but lower than diamond
2、Scratch resistant and easy to clean, far better in cleaning than fluorocarbon coating and powder injection.
3、Discoloration proof and environment resistant, it is not discolored under sunshine.
4、Alkalinity or acidity resistant and isolation (A grade fireproof level)
5、Easy for installation
6、Lifetime up to 50 years with unchanged performance
7、Available for artistical decoration without changing performance.
8、Corrosion resistant, salty fog test over 2000 hours.
9、Strong chemical corrosion resistant
10、It can inhibit bacteria from growing, easy to clean
11、The material is produced from mineral substance without any harmful substance;
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but freight is on client's account.
Q: What is your terms of payment ?
A: T/T, 30% deposit upon confirmation of order, 70% balance before delivery.
Wooden or Stone color Aluminum solid panel
Aluminum solid panel is made from high grade of aluminum metal alloy to make flat, angled, curved, round and various other complex shapes. Its regular thickness are 2.0mm, 2.5mm, 3.0mm, and 4.0mm. model 3003 and phase H24 or high class aluminum , the custom max dimension is 1220x2440 (mm). It is composed of plate, reinforcement bars and corner racks. The corner racks can be shaped from plate or punched or riveted at the edge. The reinforcement bars are soldered on back of plate to reinforce intensity and hardness of whole pane, this structure gives the panel better flatness and shock resistance as well as the long lifetime. If you want it to be sound and thermal isolation, we can add sound and thermal isolating material inside the panel.
Wooden or stone color Fluorocarbon aluminum soild panel has been widely used due to its superior weather resistance, corrosion resistance, light and beautiful quality and convenient installation. The excellent environmental and plasticity of fluorocarbon aluminum veneer is irreplaceable for other building materials,...
Specification:
ADVANTAGES
1、The hardness is up to Mohs’ scale 6.0，higher than steel but lower than diamond
2、Scratch resistant and easy to clean, far better in cleaning than fluorocarbon coating and powder injection.
3、Discoloration proof and environment resistant, it is not discolored under sunshine.
4、Alkalinity or acidity resistant and isolation (A grade fireproof level)
5、Easy for installation
6、Lifetime up to 50 years with unchanged performance
7、Available for artistical decoration without changing performance.
8、Corrosion resistant, salty fog test over 2000 hours.
9、Strong chemical corrosion resistant
10、It can inhibit bacteria from growing, easy to clean
11、The material is produced from mineral substance without any harmful substance;
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but freight is on client's account.
Q: What is your terms of payment ?
A: T/T, 30% deposit upon confirmation of order, 70% balance before delivery.
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
