Polyester ACP decoration panel
Aluminum composite panel structure
Specification
1, Panel thickness: 1-10mm, 3mm-4mm is recommended
2, Standard Size: 1220*2440mm (W*L)
3, Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
4, Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
5, Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Colors:
More than 40 colors in the color chart. Panton, RAL or customer's options also can be accepted.
Advantage:
A) Manufacturer with more than 10 years producing experience
B) You can find colors alternative in Acebond with small quantity.
C) Very fast delivery time
D) We have very strict quality standard to match each order's detail requirements.
E) QC will follow and control during the whole production to ensure the quality meets the standard.
F) Professional sales staff follow up orders and respond to customers' emails quickly in the communication process, fully understand their needs and provide the most appropriate solutions.
G) We will follow up the customers after-sales for a long time.
H) We insist on establishing a mutually beneficial and win-win long-term relationship with our customers.
Polyester ACP decoration panel
Aluminum composite panel structure
Specification
1, Panel thickness: 1-10mm, 3mm-4mm is recommended
2, Standard Size: 1220*2440mm (W*L)
3, Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
4, Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
5, Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Colors:
More than 40 colors in the color chart. Panton, RAL or customer's options also can be accepted.
Advantage:
A) Manufacturer with more than 10 years producing experience
B) You can find colors alternative in Acebond with small quantity.
C) Very fast delivery time
D) We have very strict quality standard to match each order's detail requirements.
E) QC will follow and control during the whole production to ensure the quality meets the standard.
F) Professional sales staff follow up orders and respond to customers' emails quickly in the communication process, fully understand their needs and provide the most appropriate solutions.
G) We will follow up the customers after-sales for a long time.
H) We insist on establishing a mutually beneficial and win-win long-term relationship with our customers.
Application:

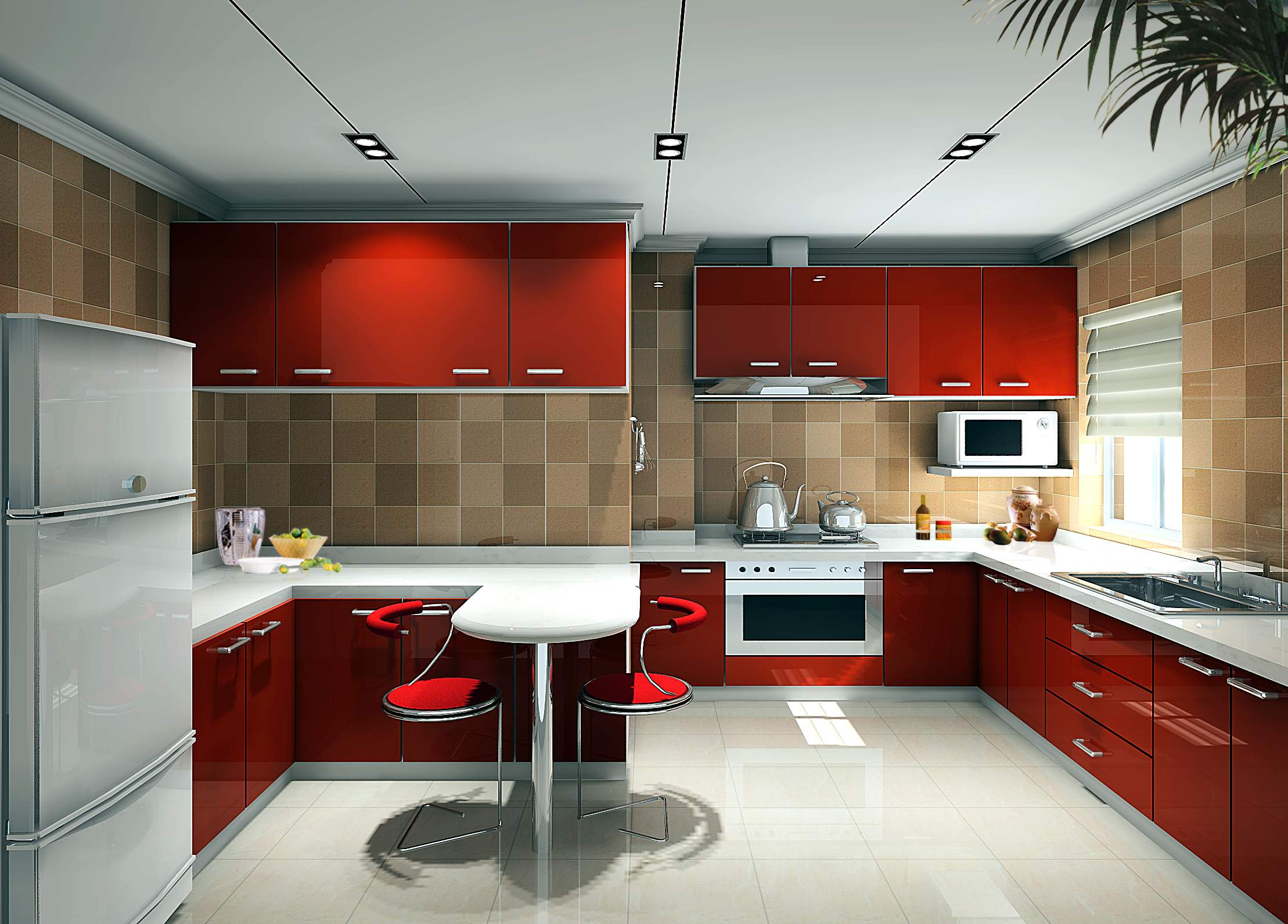

A) Kitchen cabinees, billboards, signboards, tunnels, subway, interiors.
B) Cellings, eaves, galleries, balconies, partitions, interior decorations.
Projects:
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
