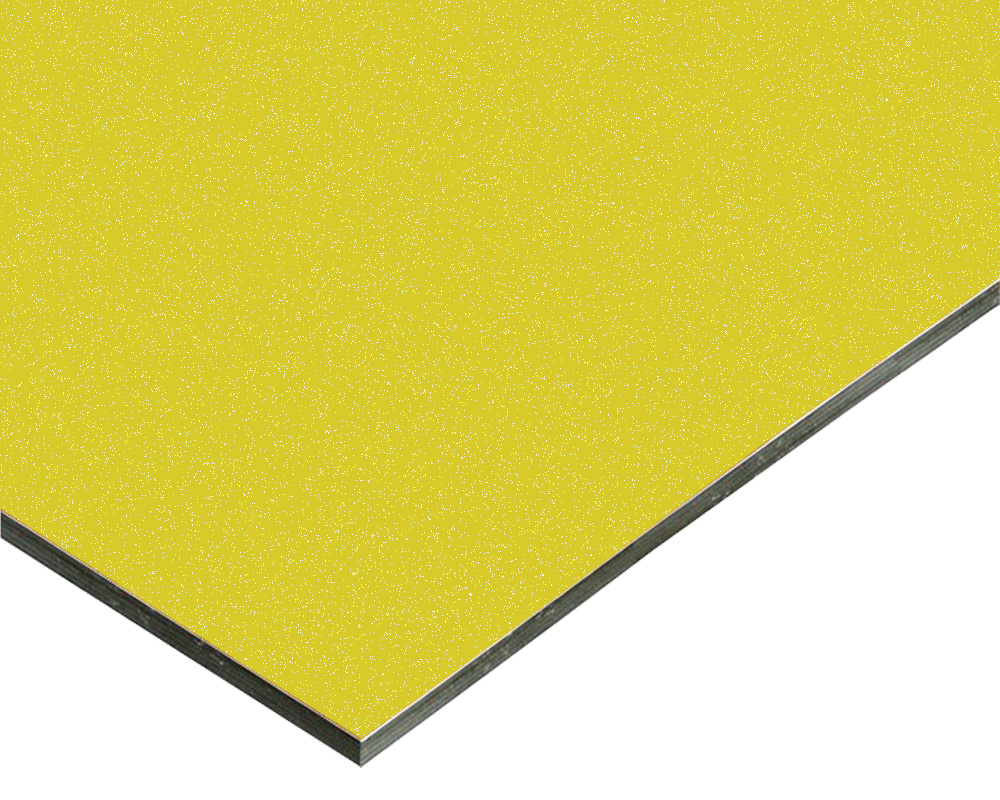

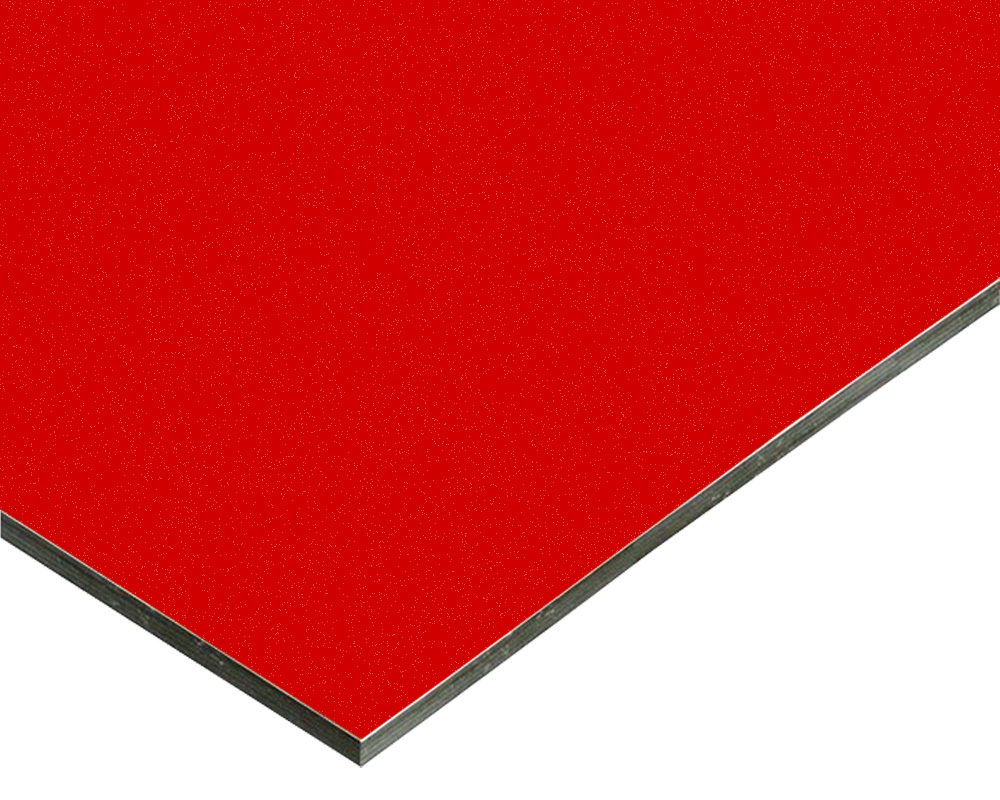

Pearl Aluminum composite cladding boards
ACEBOND Pearl ACP comprises a polyethylene core between two aluminum skins , which can be painted with high gloss polyester coating with the metallic. The protective film on the surface of aluminum can be peeled off. It is designed for use in advertising, kitchen cabinet, house decoration and other projects where high load-bearing capacity is not required.
Aluminum composite panel structure
Parameter
Specification:
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials:
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: Pearl PE coat
Colors:
1, There are around 40 kinds of color in our color chart for the reference.
2, Panton, RAL and other international color code is accepted
3, The customized color is OK, we can match the color based on your color sample
Features:
1. Beautiful appearance, and various colors for choice;
2. Multiple accessibility options;
3. Various standard and wide choice perforations;
4. Easy & fast to install;
5. Large panel with big length and width;
6. Beautiful appearance, and various colors for choice;
7. Flexible and able to create a seamless transition from ceiling to wall;
8. Fireproof, anti - corrosion, thermo stability and good weather resistance
Why we are your best choice?
1. We are a totally independent marketing, sales and manufacturing organization with strong links to a network of peer Chinese ceiling producers whose products complement our own.
2. We can provide numerous references attesting to our high standards of professionalism and reputation in the global market place.
3. We have a strong capital base.
4. We will continue to expand our core business activities and product line through our highly-trained human resources.
5. We actively seek co-operation arrangements with interested international cladding and ceiling wholesaler,fabricator,Project company.
Pearl Aluminum composite cladding boards
ACEBOND Pearl ACP comprises a polyethylene core between two aluminum skins , which can be painted with high gloss polyester coating with the metallic. The protective film on the surface of aluminum can be peeled off. It is designed for use in advertising, kitchen cabinet, house decoration and other projects where high load-bearing capacity is not required.
Aluminum composite panel structure
Parameter
Specification:
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials:
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: Pearl PE coat
Colors:
1, There are around 40 kinds of color in our color chart for the reference.
2, Panton, RAL and other international color code is accepted
3, The customized color is OK, we can match the color based on your color sample
Features:
1. Beautiful appearance, and various colors for choice;
2. Multiple accessibility options;
3. Various standard and wide choice perforations;
4. Easy & fast to install;
5. Large panel with big length and width;
6. Beautiful appearance, and various colors for choice;
7. Flexible and able to create a seamless transition from ceiling to wall;
8. Fireproof, anti - corrosion, thermo stability and good weather resistance
Why we are your best choice?
1. We are a totally independent marketing, sales and manufacturing organization with strong links to a network of peer Chinese ceiling producers whose products complement our own.
2. We can provide numerous references attesting to our high standards of professionalism and reputation in the global market place.
3. We have a strong capital base.
4. We will continue to expand our core business activities and product line through our highly-trained human resources.
5. We actively seek co-operation arrangements with interested international cladding and ceiling wholesaler,fabricator,Project company.

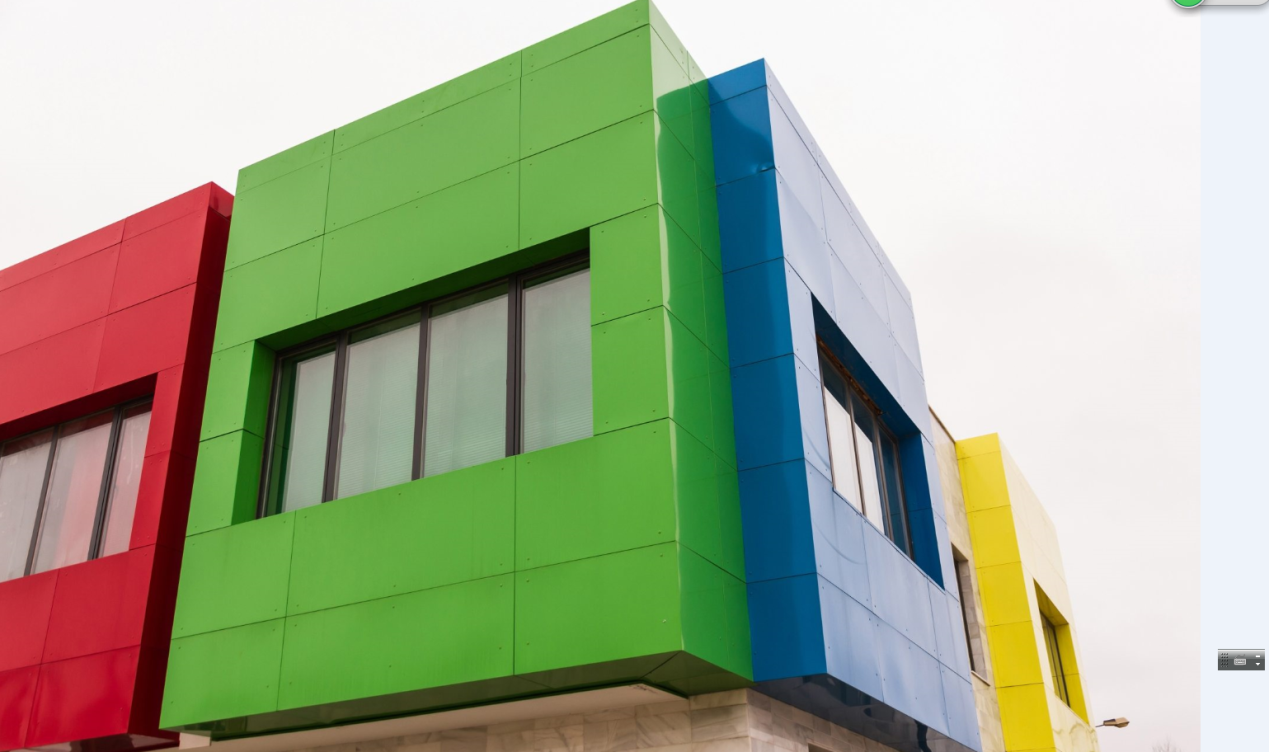

Application:
1. Supermarket, marketplace,
2. underground, air port, bus station, Subway
3. Building lobby, metro station
4. Hotel halls, restaurant, railway station
5. School, office, meeting room, hospital etc.
6. Commercial building
Projects:
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
