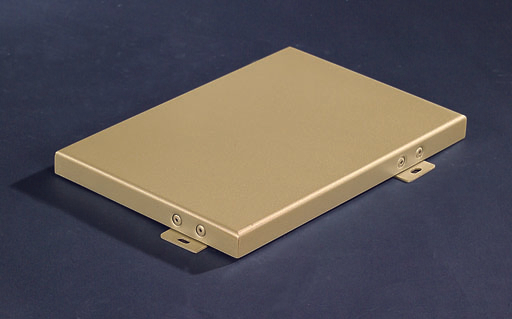

PVDF painted Aluminum curtain wall
PVDF Painted aluminum panel is with excellent resistance to extreme weather conditions, the aluminum panel system will perform for many years and provide a significant return on investment.
Colors, gloss levels, and finish textures can be tuned to meet your specific project requirements. Fastener patterns and finishes can be adjusted to contrast, or blend in. Facade panels are not limited to perpendicular edges, curves are possible, as well as abstract shapes.
Features:
CNC fabrication ensures exact dimensions
Cost savings are generated by minimizing routing and forming time
Panels can be installed out of sequence and are easily replaced if damaged
Complete flashing systems available in matching colors
Field modification of most panel materials is possible and simple
Colors:
Solid colors
Metallic colors
Wooden or stone colors:
PVDF painted Aluminum curtain wall
PVDF Painted aluminum panel is with excellent resistance to extreme weather conditions, the aluminum panel system will perform for many years and provide a significant return on investment.
Colors, gloss levels, and finish textures can be tuned to meet your specific project requirements. Fastener patterns and finishes can be adjusted to contrast, or blend in. Facade panels are not limited to perpendicular edges, curves are possible, as well as abstract shapes.
Features:
CNC fabrication ensures exact dimensions
Cost savings are generated by minimizing routing and forming time
Panels can be installed out of sequence and are easily replaced if damaged
Complete flashing systems available in matching colors
Field modification of most panel materials is possible and simple
Colors:
Solid colors
Metallic colors
Wooden or stone colors:
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
