PE coated ACP

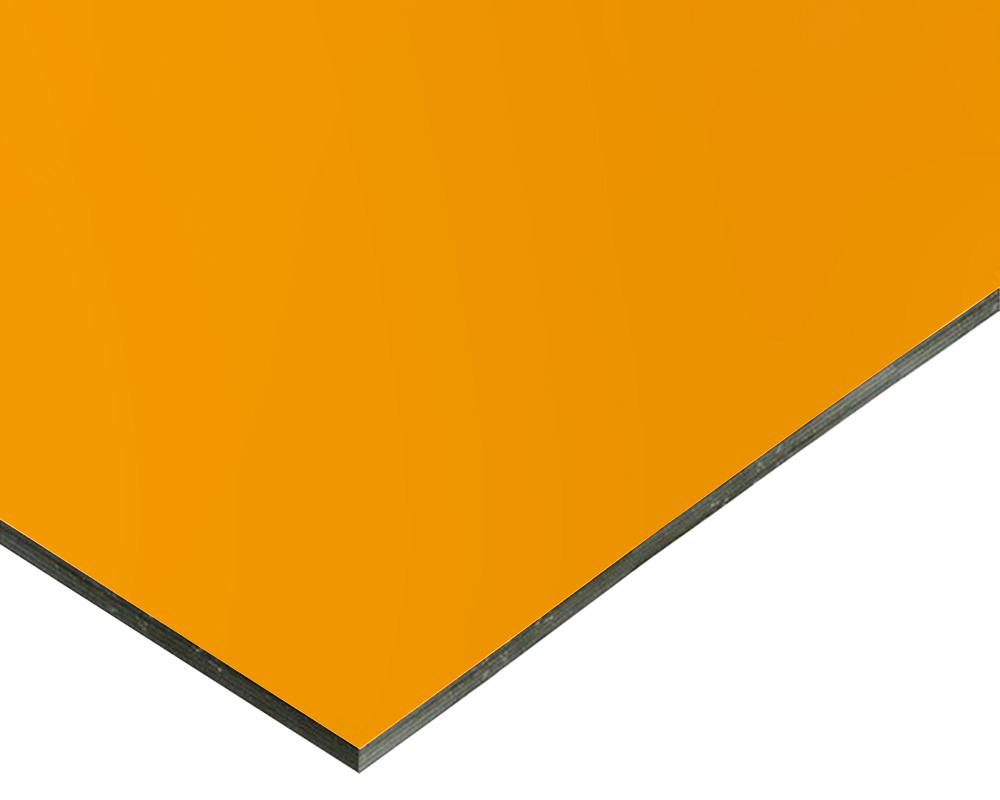

The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated with anti-corrosive paints.
Aluminum composite panel structure
Parameter
Specification
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Features:
A) Light weight, flat surface and high strength.
B) Excellent heat insulation ,sound insulation, fire-resistance, acid-resistance, etc C) Various uniform colors.
C) Bright , elegant and magnificent, fit for various designs.
D) Kynar 500 PVDF resin feature strong chemical resistance, unique colors can be easily maintained
Colors：
1, There are around 40 kinds of color in our color chart for the reference.
2, Panton, RAL and other international color code is accepted
3, The customized color is OK, we can match the color based on your color sample
Certificate & Test Report:
A) SGS Test report
B) Fireproof Test Report
C) AS1530.1 Test Report
D) CE
E) EN13501-1 Test Report
PE coated ACP
The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated with anti-corrosive paints.
Aluminum composite panel structure
Parameter
Specification
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Features:
A) Light weight, flat surface and high strength.
B) Excellent heat insulation ,sound insulation, fire-resistance, acid-resistance, etc C) Various uniform colors.
C) Bright , elegant and magnificent, fit for various designs.
D) Kynar 500 PVDF resin feature strong chemical resistance, unique colors can be easily maintained
Colors：
1, There are around 40 kinds of color in our color chart for the reference.
2, Panton, RAL and other international color code is accepted
3, The customized color is OK, we can match the color based on your color sample
Certificate & Test Report:
A) SGS Test report
B) Fireproof Test Report
C) AS1530.1 Test Report
D) CE
E) EN13501-1 Test Report

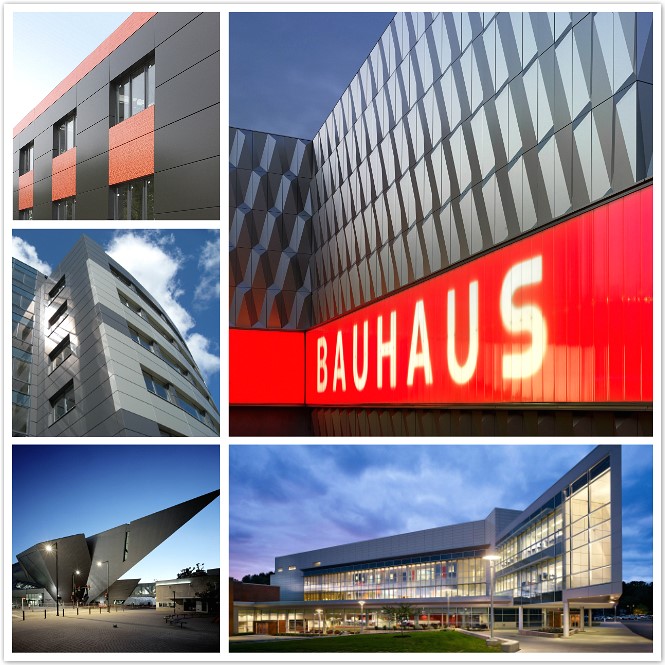

Application:
A) May be widely used in galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments.
B) An ideal decorative materials for buildings.
C) An ideal outer and inner walls.
D) Kitchen cabinets, billboards, signboards, tunnels, subway, interiors.
E) Ceilings, eaves, galleries, balconies, partitions, interior decorations.
F) Telephone toots, vehicle bodies, yachts, industrial usage etc
Application:
A) May be widely used in galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments.
B) An ideal decorative materials for buildings.
C) An ideal outer and inner walls.
D) Kitchen cabinets, billboards, signboards, tunnels, subway, interiors.
E) Ceilings, eaves, galleries, balconies, partitions, interior decorations.
F) Telephone toots, vehicle bodies, yachts, industrial usage etc
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
