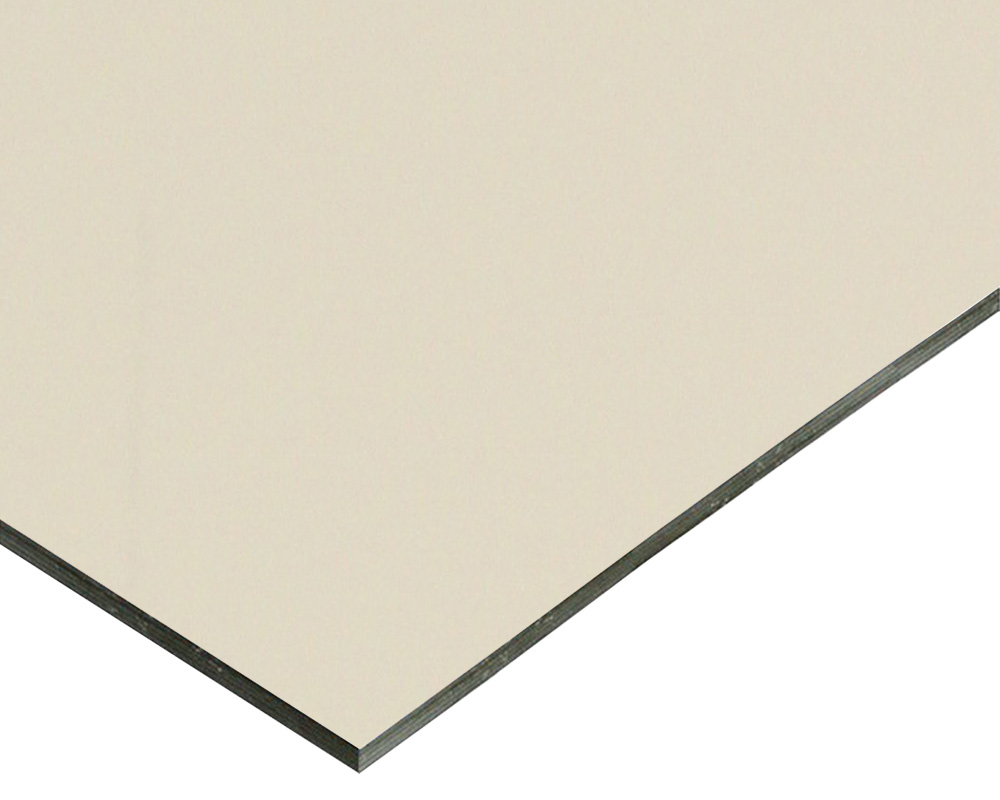

PE aluminium composite panel

The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated with anti-corrosive paints.
  • PE
Availability:
Quantity:

PE aluminium composite panel



The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated with anti-corrosive paints.



Aluminum composite panel structure

Parameter



Specification:
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm
0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended



Raw Materials:

1, Aluminum panel material: Alloy 1100, 3003, 3105, etc

2, PE core material: poison-free low-density PE

3, Coating: PE coat



Colors:

More than 40 colors in the color chart. Panton, RAL or customer's options also can be accepted.



Features:

A) Light weight, flat surface and high strength.

B) Excellent sound insulation.

C) Bright ,elegant and magnificent, fit for various designs.



Advantage (Why choose us?):

A) Manufacturer with more than 10 years producing experience

B) We have very strict quality standard to match each order's detail requirements.

C)QC will follow and control during the whole production to ensure the quality



FAQ:

1. Q: What's the size you can supply?

A: We have standard size the same as world popular size 1220 X 2440 mm. The special width we can supply also1500mm,1550mm,2000mm and so on. The thickness from 1mm to 10mm. About length is customized.

2. Q: Whats the quantity one 20GP can load?
A: Depends on the way of loading and specification of panel.
If 1220*2440*4mm,one 20GP can load 3300m2 with wood packing. If without packing. We can load 4350m2.
It's not certain number,cause the aluminum thickness also affect.

Certificate & Test Report:

A) SGS Test report

B) Fireproof Test Report

C) AS1530.1 Test Report

D) CE

E) EN13501-1 Test Report

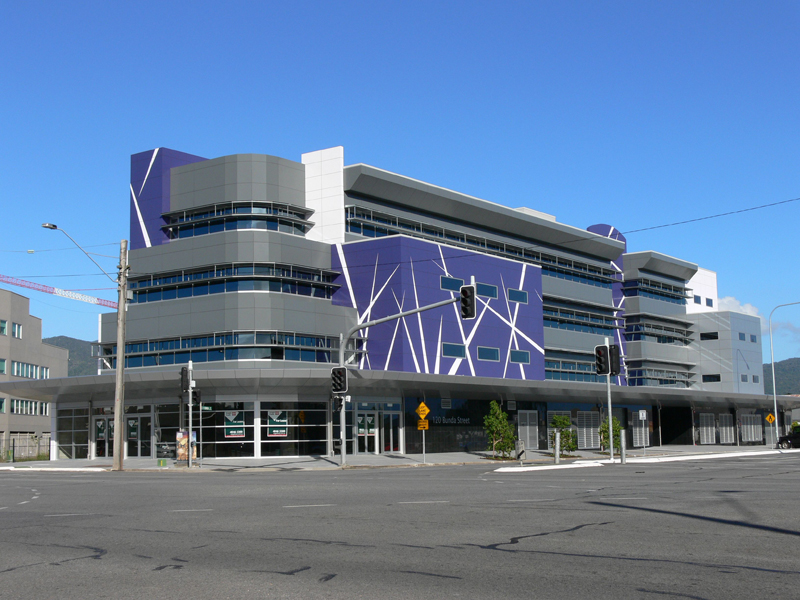

Application:

A) Kitchen cabinees, billboards, signboards, tunnels, subway, interiors.

B) Cellings, eaves, galleries, balconies, partitions, interior decoration.







1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.

5


2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,
be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.


3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at
edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special

grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.



Unit is mm

7




Package:

A) Nude Packing

B) Wooden Pallet

C) Wooden Box


8
