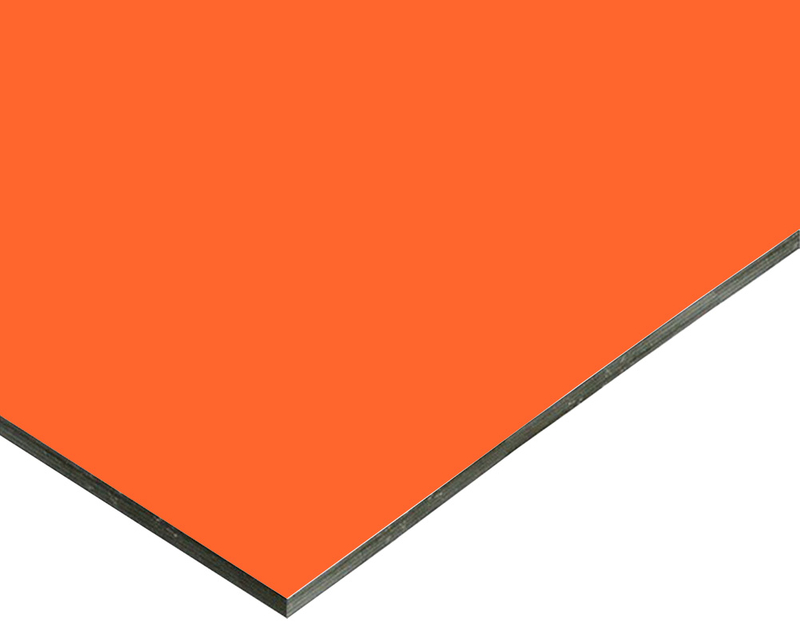

Interior wall decorative aluminum panel
Aluminum composite panel structure
Specification
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Colors:
More than 40 colors in the color chart. Panton, RAL or customer's options also can be accepted.
Features:
1. Beautiful appearance, and various colors for choice;
2. Multiple accessibility options;
3. Various standard and wide choice perforations;
4. Easy & fast to install;
5. Large panel with big length and width;
6. Beautiful appearance, and various colors for choice;
7. Flexible and able to create a seamless transition from ceiling to wall;
8. Fireproof, anti - corrosion, thermo stability and good weather resistance
FAQ:
1. Q: Whats the payment terms you can accept?
A: 30% amount paid in advance and the remaining paid before shipment. Or full amount paid by irrevocable letter of credit at sight.
2. Q: How long the protective film can be keep on the panels after install the panels?
A: We suggest within 45 days after expose the protective film in the sunlight.
Interior wall decorative aluminum panel
Aluminum composite panel structure
Specification
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.06mm-0.5mm，0.2mm, 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: PE coat
Colors:
More than 40 colors in the color chart. Panton, RAL or customer's options also can be accepted.
Features:
1. Beautiful appearance, and various colors for choice;
2. Multiple accessibility options;
3. Various standard and wide choice perforations;
4. Easy & fast to install;
5. Large panel with big length and width;
6. Beautiful appearance, and various colors for choice;
7. Flexible and able to create a seamless transition from ceiling to wall;
8. Fireproof, anti - corrosion, thermo stability and good weather resistance
FAQ:
1. Q: Whats the payment terms you can accept?
A: 30% amount paid in advance and the remaining paid before shipment. Or full amount paid by irrevocable letter of credit at sight.
2. Q: How long the protective film can be keep on the panels after install the panels?
A: We suggest within 45 days after expose the protective film in the sunlight.
Application:
A) Kitchen cabinees, billboards, signboards, tunnels, subway, interiors.
B) Cellings, eaves, galleries, balconies, partitions, interior decorations.
Projects:
Application:
A) Kitchen cabinees, billboards, signboards, tunnels, subway, interiors.
B) Cellings, eaves, galleries, balconies, partitions, interior decorations.
Projects:
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however, be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminum-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special
grooving machinery for aluminum-plastic panel to ensure grooving depth is not damage the opposite aluminum material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section.
Unit is mm
