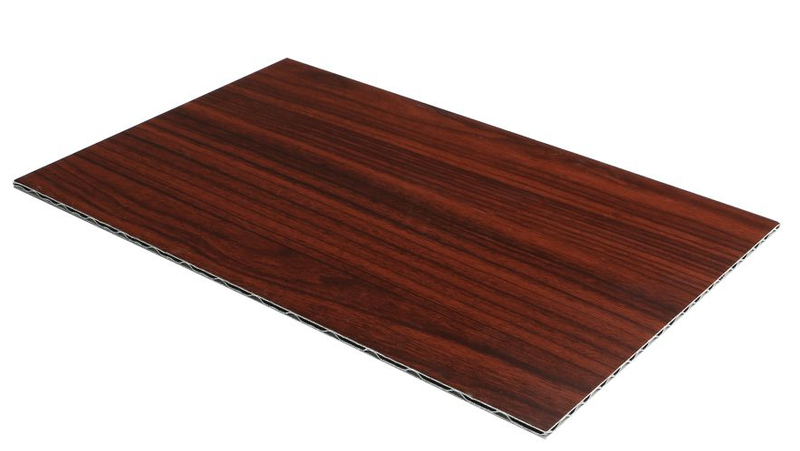

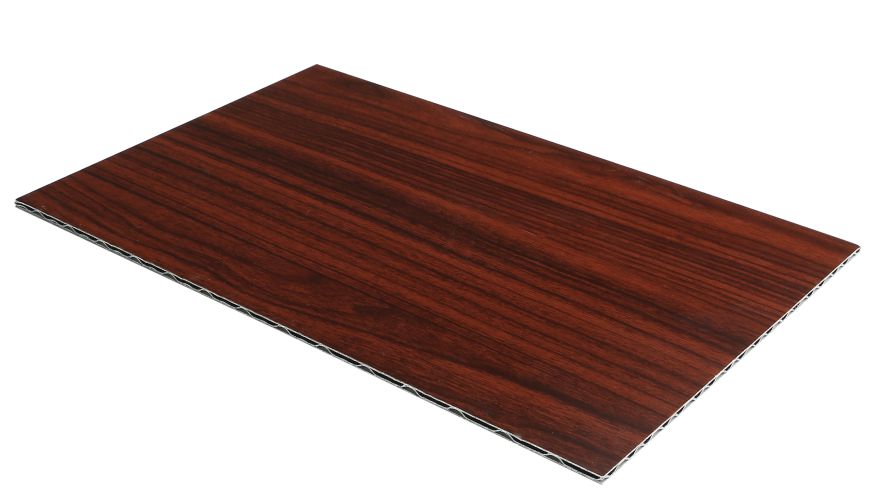

Fireproof Wooden Aluminum Core Panel

The panel comprises a aluminum core between two aluminum skin, the core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE or PVDF paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pre-treatment or coated with anti-corrosive paints.
Availability:
Quantity:


Fireproof Wooden Aluminum Core Panel



The panel comprises a corrugate lattice aluminum sheet between two aluminium skins. Thicknesses of the corrugate lattice and Aluminium skins is 4mm. The front surface can be PVDF coated, or PE coated. Protective film is easily peeled off. The rear surface can be anti-corrosive pretreatment or anti-corrosive paint.


Structure:



Specification:

Panel thickness: 3/3.5/4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: 1220mm, 1250mm, 1300mm, 1500mm are recommended
Panel length: max to 5800mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.6mm-1.0mm are recommended



Raw Materials

1, Aluminum panel material: Alloy 1100, 3003, 3105, 5005, etc

2,Core material: Embossed Aluminum Core

3, Coating: PE/PVDF Wooden color



Certificate:

Test Method: EN13501-1: 2007+A1:2009

Test Result: A2 standard Fireproof

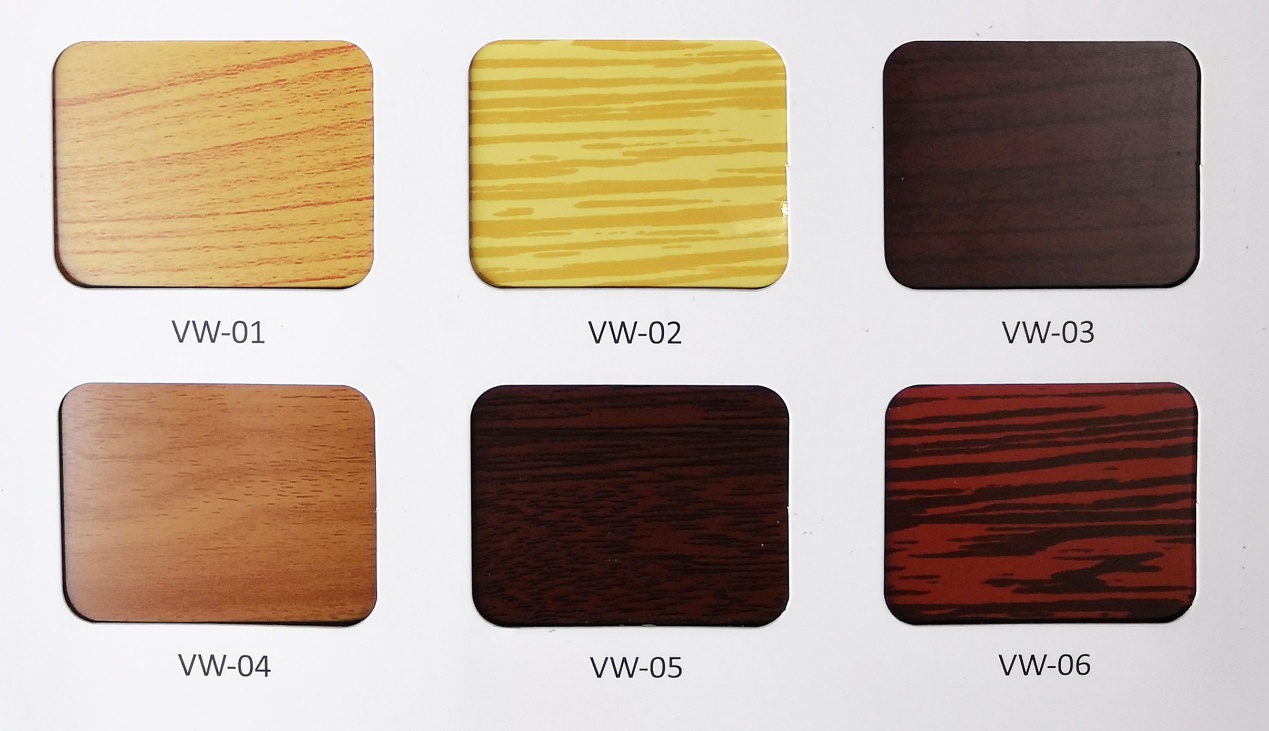

Colors:

1, There are many kinds of color in our color chart for the reference.

2, The customized color is OK, we can match the color based on your color sample


Advantage (Why choose us?):

A) We have a strong capital base.

B) We will continue to expand our core business activities and product line through our highly-trained human resources.

C) We actively seek co-operation arrangements with interested



ADVANTAGE

A) Manufacturer with more than 10 years producing experience

B) You can find colors alternative in Acebond with small quantity.

C) Very fast delivery time

D) We have very strict quality standard to match each order's detail requirements.

E) QC will follow and control during the whole production to ensure the quality meets the standard

F) Professional sales staff follow up orders and respond to customers' emails quickly in the communication process, fully understand their needs and provide the most appropriate solutions

G) We will follow up the customers after - sales for a long time

H) We insist on establishing a mutually beneficial and win-win long-term relationship with our customers





Application:

A) May be widely used in galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments.

B) An ideal decorative materials for buildings.

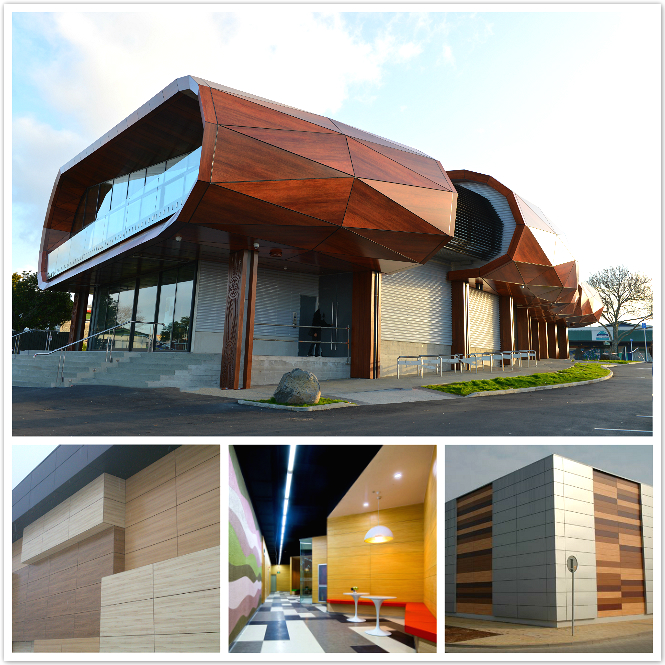

Projects:

























































1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.

5

2) Protective film:

The film protects the paint finish during fabrication and installation. It   should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels   exposed to sunlight and weather. The protective film should only remain temporarily on   the panels. Arrows are printed on the film to indicate the direction of coil-coating   (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used   on PVDF.



3) Grooving:

When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold     section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt  reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm  4) Lacquer Cleaning Information:




 7


Cleaning Solution:

Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.


Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.

Do not clean hot surface(>40) as the quick drying process may cause blemishes.



Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.


Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period.  In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary.  An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)

Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.


Package:

A) Nude Packing

B) Wooden Pallet

C) Wooden Box










Factory View:
