Fireproof Stone color Aluminum core Panel
Stone color Aluminum Core Panel is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of embossed Aluminum layer in the middle. For the two aluminum skins, which is processed by chemical anodizing treatment, they are stone color.
The interlayer is non-combustible aluminum sheet, which has excellent ability in fire resistance. Also mineral material enables ACP to have high peel strength and excellent impact resistance.

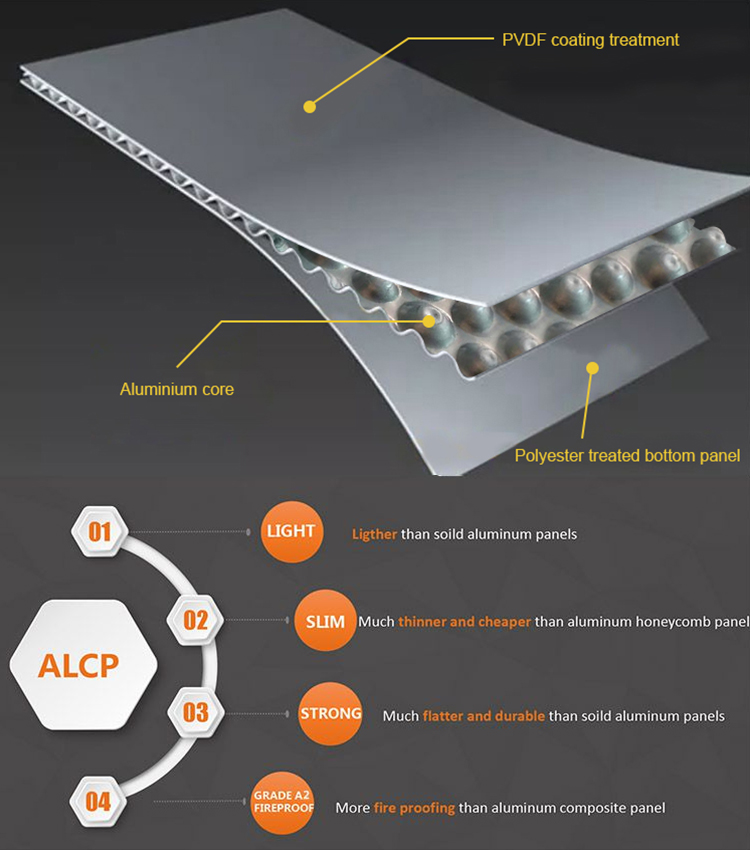

Structure:
Brand Name | ACEBOND stone aluminium sandwich panels |
Panel size | 1) Standard size :1220mmx2440mmx3mm/3.5/4mm
3) Accepted width: 1000mm, 1220mm,1250mm, 1500mm,1550mm,
(non-standard width, but availble),etc
4) Accepted Length: According to buyer's requirements (Max:6000mm)
5) Skin aluminium thickness: 0.6/0.7/0.8/0.9mm, etc |
Materials | 1) Front: aluminium alloy sheet coated with Stone color PVDF or PE.
2) Core: Embossed Aluminum core 3) Back: aluminium coated with polyester service coating or just mill finish. |
Quality | 1)Under common temperatures and radiation, the surface is no color different.
2)Under natural climate, film coating will be no flake,no rubbles,no vestige and no pulverization. |
Characteristics | 31)The surface is smooth and flat and easy to maintain., just use neutral cleaner and
water can totally renew the panel.
2)The aluminium surface is tough, the core PE panel is flexible, therefore the panel
has high impact resistance. |

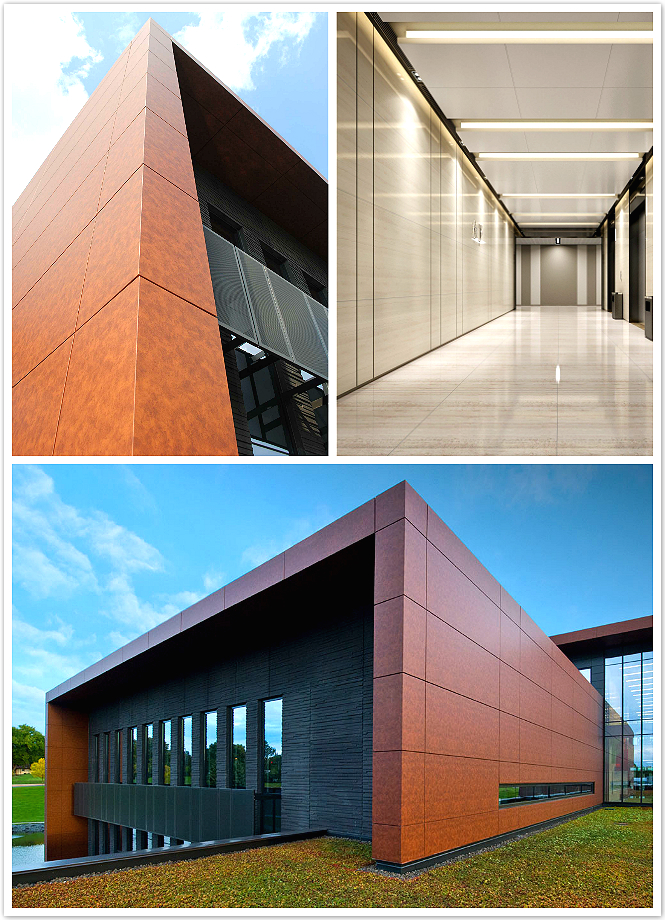

Application 1) | 1)Constructional exterior curtain walls;
2)Decorative renovation for storey-added old buildings;
3) Wallboard and ceilings for tunnels; |
Certification | EN13501-1 Test Report |
Why ACEBOND is your best choice?
1. We are a totally independent marketing, sales and manufacturing organization with strong links to a network of peer Chinese ceiling producers whose products complement our own.
2. We can provide numerous references attesting to our high standards of professionalism and reputation in the global market place.
3. We have a strong capital base.
4. We will continue to expand our core business activities and product line through our highly-trained human resources.
5. We actively seek co-operation arrangements with interested international cladding and ceiling wholesaler, fabricator, Project company.
Fireproof Stone color Aluminum core Panel
Stone color Aluminum Core Panel is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of embossed Aluminum layer in the middle. For the two aluminum skins, which is processed by chemical anodizing treatment, they are stone color.
The interlayer is non-combustible aluminum sheet, which has excellent ability in fire resistance. Also mineral material enables ACP to have high peel strength and excellent impact resistance.
Structure:
Brand Name | ACEBOND stone aluminium sandwich panels |
Panel size | 1) Standard size :1220mmx2440mmx3mm/3.5/4mm
3) Accepted width: 1000mm, 1220mm,1250mm, 1500mm,1550mm,
(non-standard width, but availble),etc
4) Accepted Length: According to buyer's requirements (Max:6000mm)
5) Skin aluminium thickness: 0.6/0.7/0.8/0.9mm, etc |
Materials | 1) Front: aluminium alloy sheet coated with Stone color PVDF or PE.
2) Core: Embossed Aluminum core 3) Back: aluminium coated with polyester service coating or just mill finish. |
Quality | 1)Under common temperatures and radiation, the surface is no color different.
2)Under natural climate, film coating will be no flake,no rubbles,no vestige and no pulverization. |
Characteristics | 31)The surface is smooth and flat and easy to maintain., just use neutral cleaner and
water can totally renew the panel.
2)The aluminium surface is tough, the core PE panel is flexible, therefore the panel
has high impact resistance. |
Application 1) | 1)Constructional exterior curtain walls;
2)Decorative renovation for storey-added old buildings;
3) Wallboard and ceilings for tunnels; |
Certification | EN13501-1 Test Report |
Why ACEBOND is your best choice?
1. We are a totally independent marketing, sales and manufacturing organization with strong links to a network of peer Chinese ceiling producers whose products complement our own.
2. We can provide numerous references attesting to our high standards of professionalism and reputation in the global market place.
3. We have a strong capital base.
4. We will continue to expand our core business activities and product line through our highly-trained human resources.
5. We actively seek co-operation arrangements with interested international cladding and ceiling wholesaler, fabricator, Project company.
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
