Fire resistant facade panel
FR (Fire resistance) panel comprises a mineral core between two aluminum skins. Thicknesses of the mineral core and Aluminum skins can be designed according to customers’ requirements. Besides the traditional Magnesium hydroxide filled core, Aluminum Trihydroxide filled core is available as well. The front surface can be PVDF, or PE coated. Protective film is easily peeled off. The rear surface can be anti-corrosive pretreatment or anti-corrosive paint.
Contrast Fire Test among Class A2 FR ACP, Class B FR ACP and Normal PE Core ACP(30 seconds after ignition out)

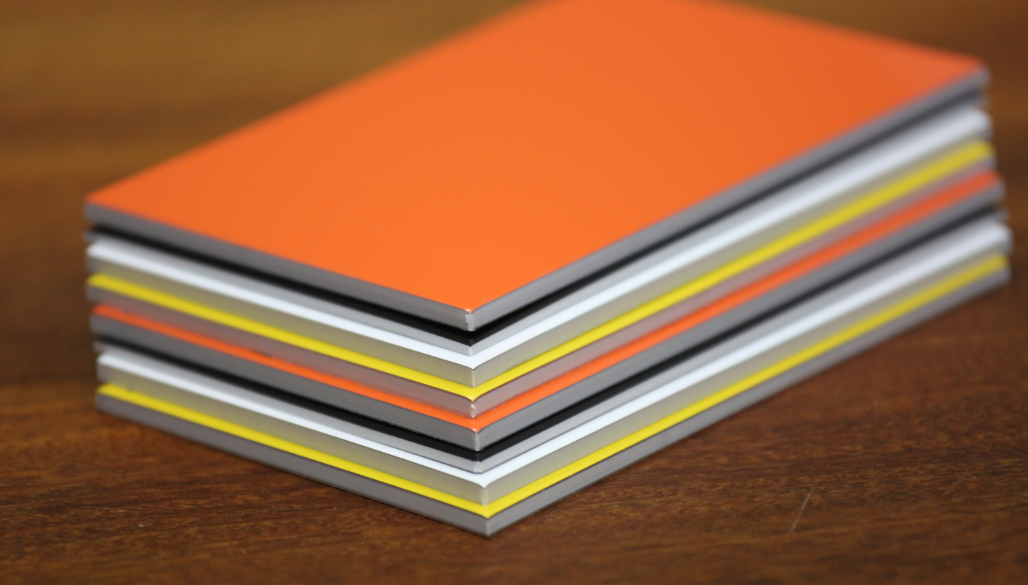

Aluminum composite panel structure
Parameter
Specification:
Panel thickness: 3mm, 4mm, 5mm, 6mm
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 6000mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.3mm, 0.4mm, 0.5mm are recommended
Raw Materials:
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: Fire-proof Mineral core
3, Coating: PVDF or PE coat
Colors:
1, There are around 40 kinds of color in our color chart for the reference.
2, Panton, RAL and other international color code is accepted
3, The customized color is OK, we can match the color based on your color sample
Standard:
A) EN13501-1:2007
B) BS 476 part6, part7
Characteristics and Usage：
Compared with Solid Aluminum, AcebondB1, A2 FR has low price, light weight, high strength, smooth surface, good coating quality, good insulation, and easy processing. It is fit for high required fire walls and indoor and outdoor decoration.
ACEBOND FR ACP General Properties Contrast Table：
Core Material | Normal
PE | ACEBOND
B1+ | ACEBOND
FR or HFR | ACEBOND
A2 |
FR Ingredients | 100% | 50% | 70% | 90% |
Heat Value | >45 MJ/kg | ＜20 MJ/kg | ＜15 MJ/kg | ＜3 MJ/kg |
Oxygen Index | 16-18 | 32-34 | 32-34 | ≥80 |
FR Grade | CHN GB8624：B2 | Europe: EN13501:B-s1,d0 | CHN GB8624：B1-s1,d0,t0
EU EN13501：B-s1,d0
USA ASTME-84、NFPA285、ASTME-119
RU GOST30244-94、30402-96、
12.1.044-89
UKR BV 2.7-19-95(GOST30244-94)
UK BS476 Part6﹠7
GERMANY DIN4102Part1 | CHN GB8624：A2-s1,d0,t0
EU EN13501：A2-s1,d0
Singapore PSB
(BS476 Part6﹠7)：0,1 |
Features:
A)Torsion Strength
High resistance to pressure and force exertion;High flexibility;No damages to paint layer when curved;Resistant to corrosion even by sand storm;
B)Easy Processing & Installation
Easy to process due to its light weight;Superior constructability make it easy to cut,plan edge,bend and form with simple tools;
C)Thermal Resistance
Acebond ACP’s have insulating properties that prevent heat to penetrate structures,which translates into energy savings;
D)Fire Resistance
Fireproof ability is higher, it have B1 and A2 grade standard;
FAQ:
1. Q: Whats the payment terms you can accept?
A: 30% amount paid in advance and the remaining paid before shipment. Or full amount paid by irrevocable letter of credit at sight.
2. Q: How long the protective film can be keep on the panels after install the panels?
A: We suggest within 45 days after expose the protective film in the sunlight.
