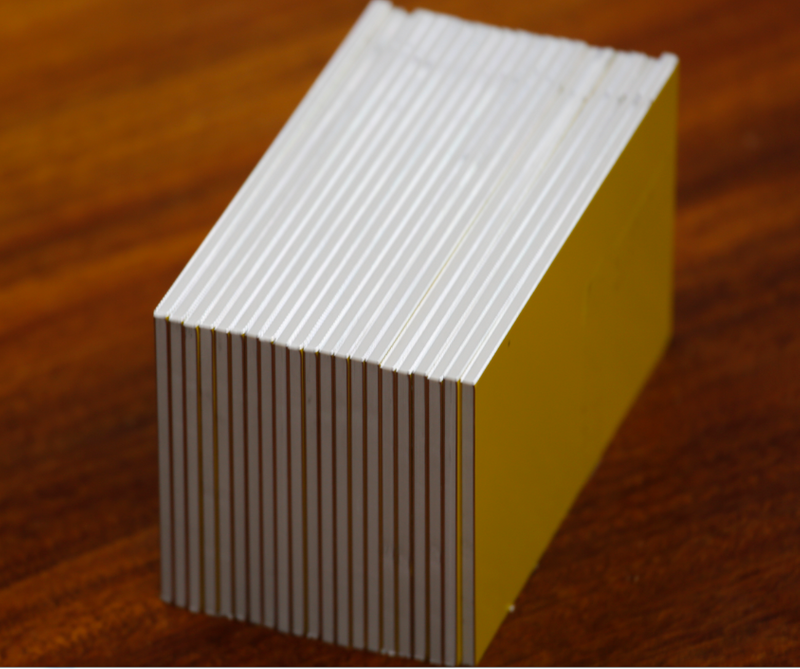

Fire rated Aluminum composite panel

The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PVDF paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated with anti-corrosive paints.
Availability:
Quantity:


Fire rated Aluminum composite panel


FR (Fire resistance) panel comprises a mineral core between two aluminum skins. Thicknesses of the mineral core and Aluminum skins can be designed according to customers’ requirements. Besides the traditional Magnesium hydroxide filled core, Aluminum Trihydroxide filled core is available as well. The front surface can be PVDF, or PE coated. Protective film is easily peeled off. The rear surface can be anti-corrosive pretreatment or anti-corrosive paint.


Contrast Fire Test among Class A2 FR ACP, Class B FR ACP and Normal PE Core ACP(30 seconds after ignition out)



Aluminum composite panel structure

1


Parameter



Specification:

Panel thickness: 3mm, 4mm, 5mm, 6mm

Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 6000mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.3mm, 0.4mm, 0.5mm are recommended



Raw Materials:

1, Aluminum panel material: Alloy 1100, 3003, 3105, etc

2, PE core material: Fire-proof Mineral core

3, Coating: PVDF or PE coat



Colors:

1, There are around 40 kinds of color in our color chart for the reference.

2, Panton, RAL and other international color code is accepted

3, The customized color is OK, we can match the color based on your color sample


Standard:

A) EN13501-1:2007
B) BS 476 part6, part7


Characteristics and Usage

Compared with Solid Aluminum, AcebondB1, A2 FR has low price, light weight, high strength, smooth surface, good coating quality, good insulation, and easy processing. It is fit for high required fire walls and indoor and outdoor decoration.



ACEBOND FR ACP General Properties Contrast Table:

Core Material

Normal
  PE

ACEBOND
  B1+

ACEBOND
  FR or HFR

ACEBOND
  A2

FR Ingredients

100%

50%

70%

90%

Heat Value

>45 MJ/kg

20 MJ/kg

15 MJ/kg

3 MJ/kg

Oxygen Index

16-18

32-34

32-34

≥80

FR Grade

CHN GB8624B2

Europe: EN13501:B-s1,d0

CHN GB8624B1-s1,d0,t0
  EU EN13501
B-s1,d0
  USA ASTME-84
NFPA285ASTME-119
  RU GOST30244-94
30402-96
  12.1.044-89
  UKR BV 2.7-19-95(GOST30244-94)
  UK BS476 Part6
7
  GERMANY DIN4102Part1

CHN GB8624A2-s1,d0,t0
  EU EN13501
A2-s1,d0
  Singapore PSB
  (BS476 Part6
7)0,1



Features:

A) Weather Resistance

PVDF coating(KYNAR-500)material provides good weatherability.The surface will not be damaged under any climate;Color will last longer;

B) Even Coat &Various Colors

Acebond ACP’s use advanced film technology,making the joining of paint and panel strong and uniform;Diversity of colors can satisfy your different requirements;

C) Fire Resistance

Fireproof ability is higher, it have B1 and A2 grade standard;



FAQ:

1. Q: How to store the panels?
A: Keep the panels in wind flew and dry area avoid water or wet area to touch the land directly.

2. Q: Whats the point we have to pay attention when install the panels?
A: A. The accessories should be specified by the reputable and qualified designer or engineers.
B. Install the panels in one direction only.
C. Panels span and frame spefication should be calculated by the structural engineers.












Application:

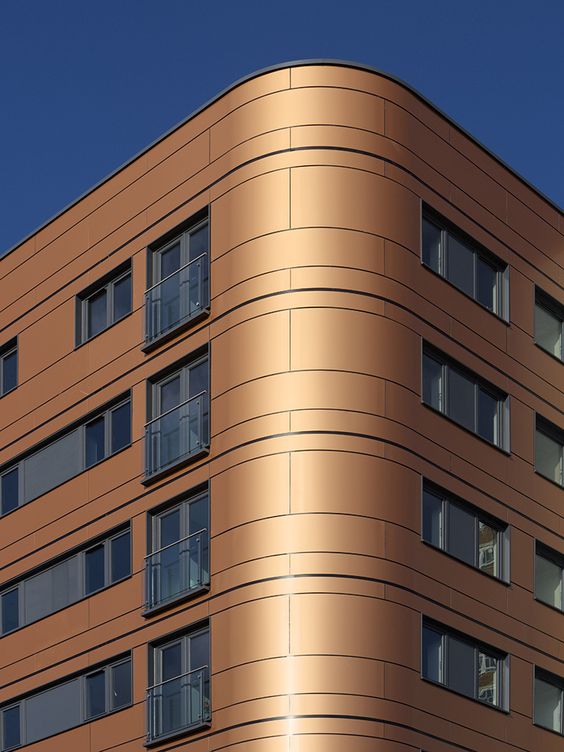

Building cladding


Projects:



































1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.

5

2) Protective film:

The film protects the paint finish during fabrication and installation. It   should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels   exposed to sunlight and weather. The protective film should only remain temporarily on   the panels. Arrows are printed on the film to indicate the direction of coil-coating   (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used   on PVDF.



3) Grooving:

When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold     section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt  reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm  4) Lacquer Cleaning Information:




 7


Cleaning Solution:

Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.


Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.

Do not clean hot surface(>40) as the quick drying process may cause blemishes.



Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.


Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period.  In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary.  An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)

Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.


Package:

A) Nude Packing

B) Wooden Pallet

C) Wooden Box



8

10

9
