Exterior Aluminum core composite panel

The panel comprises a aluminum core between two aluminum skin, the core's thickness and alloy's width can be designed according to customers requirement, the front surface is coated with PE or PVDF paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pre-treatment or coated with anti-corrosive paints.
Availability:
Quantity:


Exterior Aluminum core composite panel

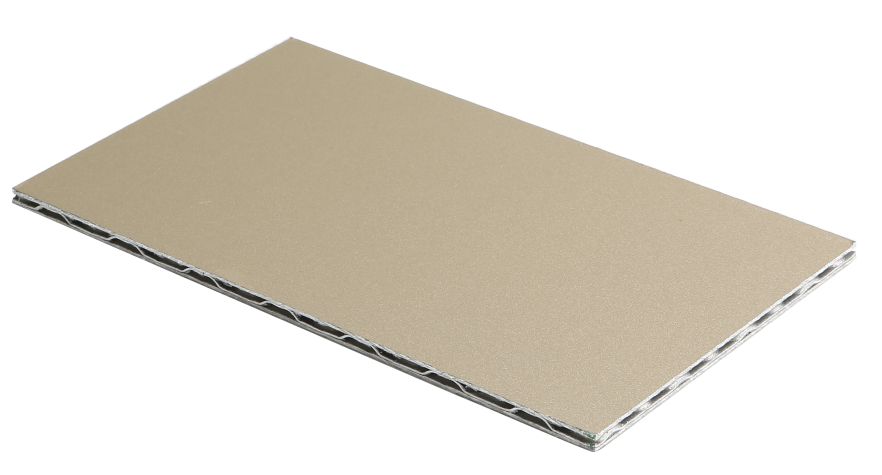

ACEBOND Aluminum core composite panel  consists of an embossed aluminum core ( manufactured from different thickness Aluminum sheet ), bonded between two Aluminium sheets . It is an ASP which is light-weight but very stiff and strong .It is A2 Fireproof Panel .


Color

 Color chart/ As your requirment

Design

 OEM/ODM

Panel  Width

 1000mm/1220mm/1250mm/1500mm/1550mm

 /1570mm/2000mm

Panel  Length

 2440mm/3200mm/40000mm/5000mm
   /6000mm/Customized

Panel Thickness

 3mm to  4mm

Aluminum Thickness

 0.4mm to 0.7mm/Customized

Free Sample

 Yes

 Unit weight

 4-6kg/sqm

Function Description

 1.Outdoor advertisement

 2.Building exterior

Coating

 PVDF

MOQ

 300 Square meter


Structure:


Advantages

A. Made with homogenous aluminum material that can be recycled in the future . A2 Grade fireproof rating that can pass any fire safety standards

B. High strength that can provide high wind resistance , light weight resulting in overall load reduction , with good sound and heat insulation

C. Uniform color coating with no chromatic aberration. Wide range of color choices to meet any design concepts

D. High quality and cost effective , price that is cheaper than any competition from Germany while maintaining the same level of quality .



Certificate:

Test Method: EN13501-1: 2007+A1:2009

Test Result: A2 standard Fireproof


Application:

A. Building interior / exterior walls.
B. Decoration and renovation additions for old buildings.
C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies.
D. Company door decorations.
E. Advertisement board display platforms and signboards.
F. Wallboard and ceilings

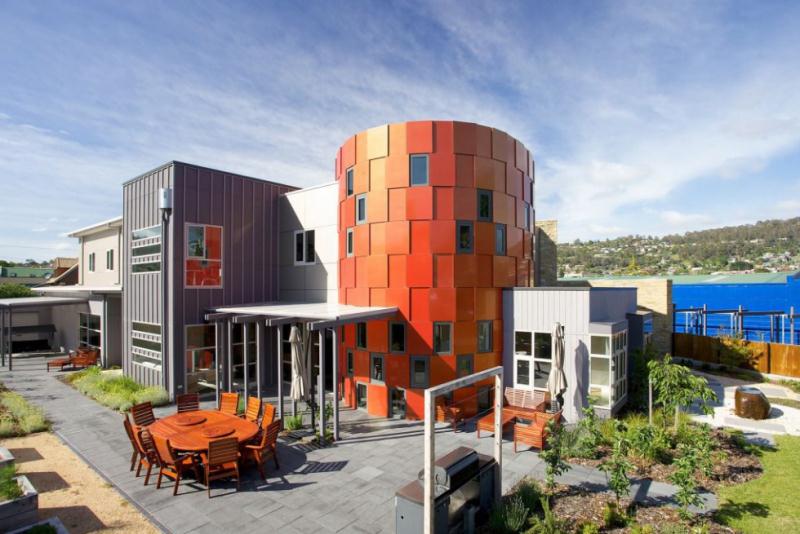

Projects:








































































1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.

5

2) Protective film:

The film protects the paint finish during fabrication and installation. It   should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels   exposed to sunlight and weather. The protective film should only remain temporarily on   the panels. Arrows are printed on the film to indicate the direction of coil-coating   (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used   on PVDF.



3) Grooving:

When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold     section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt  reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm  4) Lacquer Cleaning Information:




 7


Cleaning Solution:

Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.


Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.

Do not clean hot surface(>40) as the quick drying process may cause blemishes.



Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.


Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period.  In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary.  An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)

Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.


Package:

A) Nude Packing

B) Wooden Pallet

C) Wooden Box










Factory View:
