Aluminum Wall cladding panels
You are here: Home » Products » Aluminum Solid Panel » Aluminum Solid Panel » Flat Seam Series » Aluminum Wall cladding panels

Product Category

Share to:

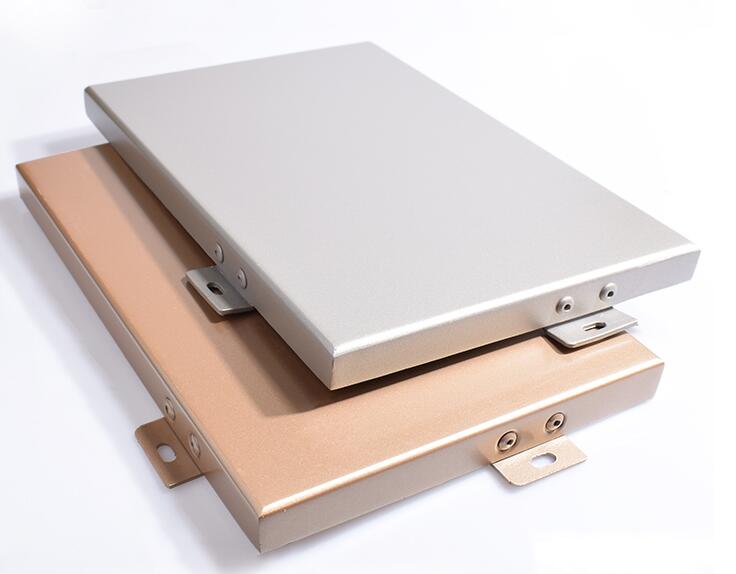

Aluminum Wall cladding panels

Fluorocarbon aluminum soild panel has been widely used due to its superior weather resistance, corrosion resistance, light and beautiful quality and convenient installation.
Availability:
Quantity:


Aluminum Wall cladding panels


1, Specification:

Product Name

Aluminum Wall cladding  Panels

Product Type

Solid Aluminum Panel, Shaped plate (circular panel, double-arc panel, etc.),
Curved panels, large louver etc.

Certification

ISO9001:2015

Regular Thickness

1.5mm, 2.0mm, 2.5mm, 3mm, 3.5mm, 4mm-20mm

Max Size

1500*5500mm
Note:Price is changed by different sizes, we can create them which is exceed above size, and the delivery time would more long.

Raw Material

1100 H24、1060 H24、3003 H24、5005 H24

Surface treatment

Powder coated, PE, PVDF, Wood grain, Stone grain

Colour type

Solid colors, Metallic colors, Wood grain, Marble and Rock color, etc.

Service Range

Manufacture products in accordance with customer drawings
1. Provide professional design and suggestion.
2. Purchase Raw materials and manufacture all kinds of products.

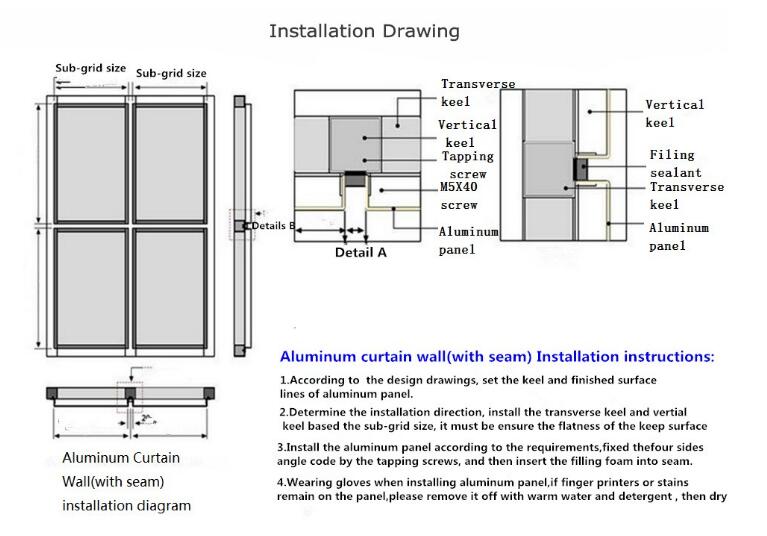

2, Installation, Color and Series:



3, FAQ

1, Q:Are you manufacture or simply trading company ?

A: We are the manufacture , welcome you visit our factory.



2,Q: Do you provide free samples ?

A:We do provide free samples under the condition that you assume the express shipping cost



3,Q: How to place order ?

A: Please tell us the service you need, OEM or ODM, and the quantity , then we will make the PI for you.



4,Q: How did you test the product before they are packed?

A :We have the strict QC procedure , each product will be tested by three times with professional machine before packing.



5,Q:What's the delivery time ?

A: Usually 15-20 days after receiving deposit .



6,Q:Where is the shipping port ?

A:We ship the products via Huangpu port, Guangzhou or any other ports depend on your needs.



7,Q: What about the payment terms ?

A: 30% TT advanced payment , balance need to pay before shipment.

Other terms payment terms also can be negotiated.






Application:

1) Interior wall cladding

2) Exteror wall cladding

3) Ceiling panel

4) Aluminum fence

5) Other decoration area

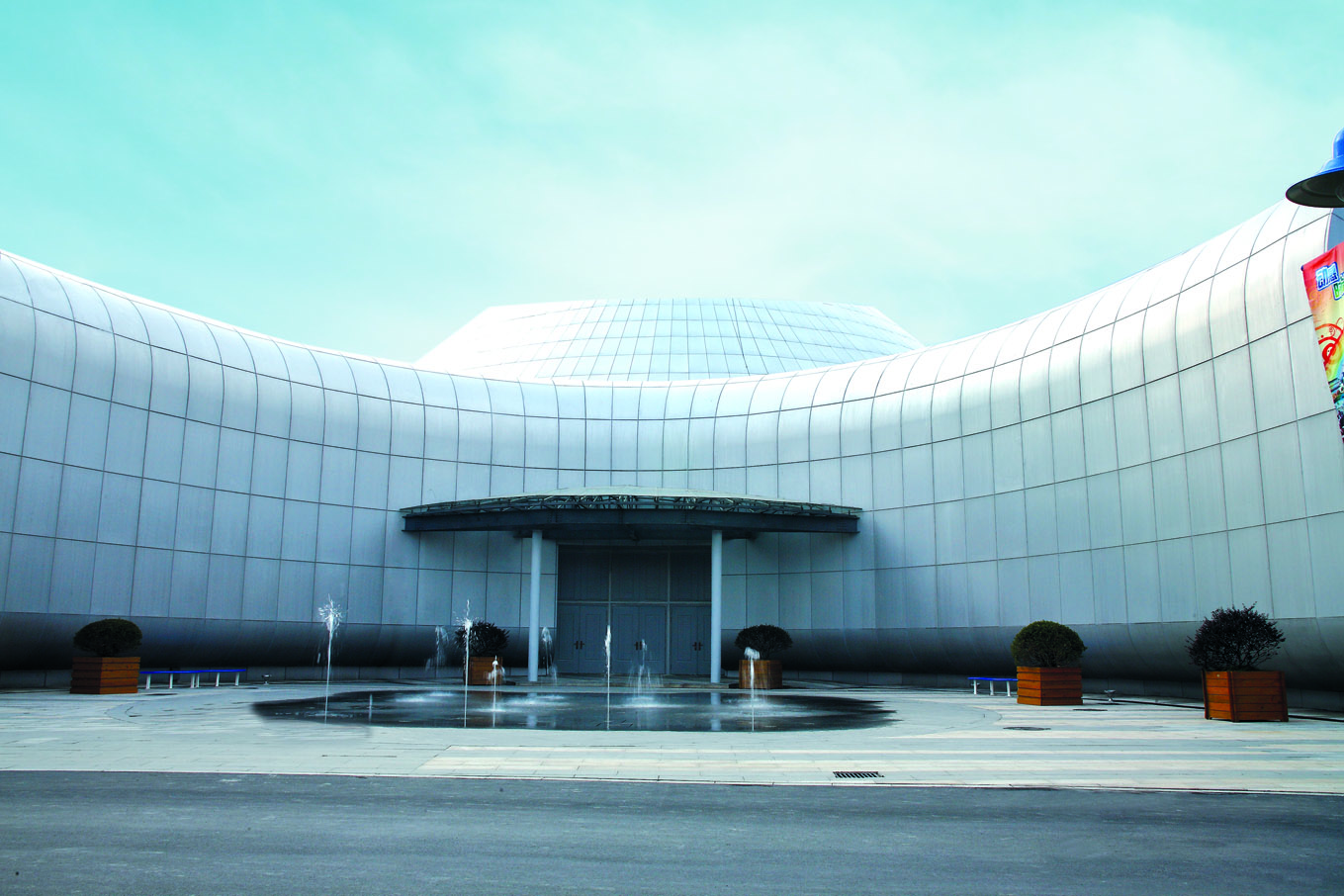

Projects:
















































































1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.

5

2) Protective film:

The film protects the paint finish during fabrication and installation. It   should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels   exposed to sunlight and weather. The protective film should only remain temporarily on   the panels. Arrows are printed on the film to indicate the direction of coil-coating   (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used   on PVDF.



3) Grooving:

When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold     section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt  reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm  4) Lacquer Cleaning Information:




 7


Cleaning Solution:

Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.


Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.

Do not clean hot surface(>40) as the quick drying process may cause blemishes.



Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.


Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period.  In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary.  An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)

Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.


Package:

A) Nude Packing

B) Wooden Pallet

C) Wooden Box

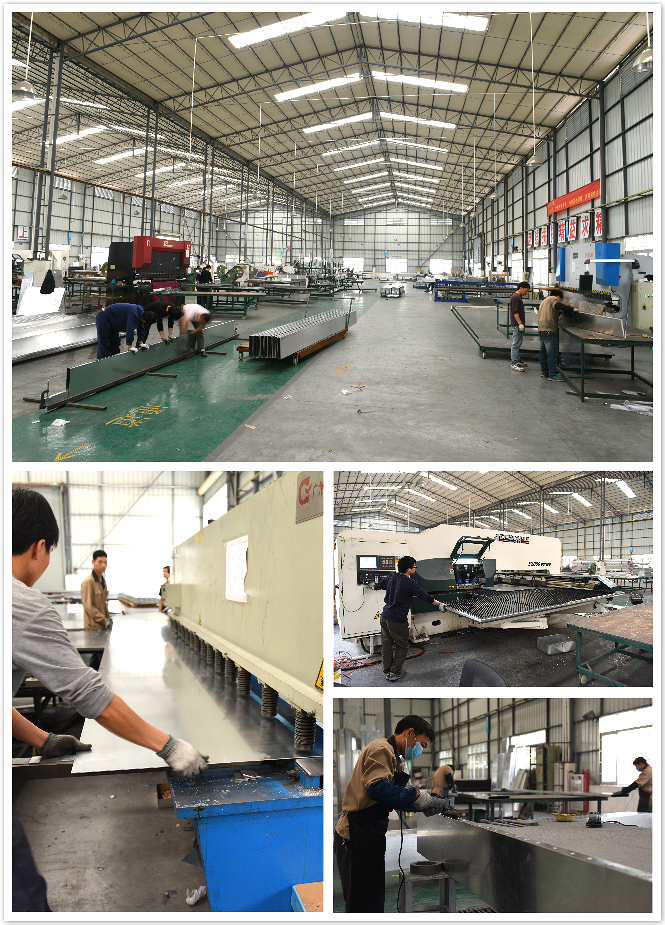

Factory View:
