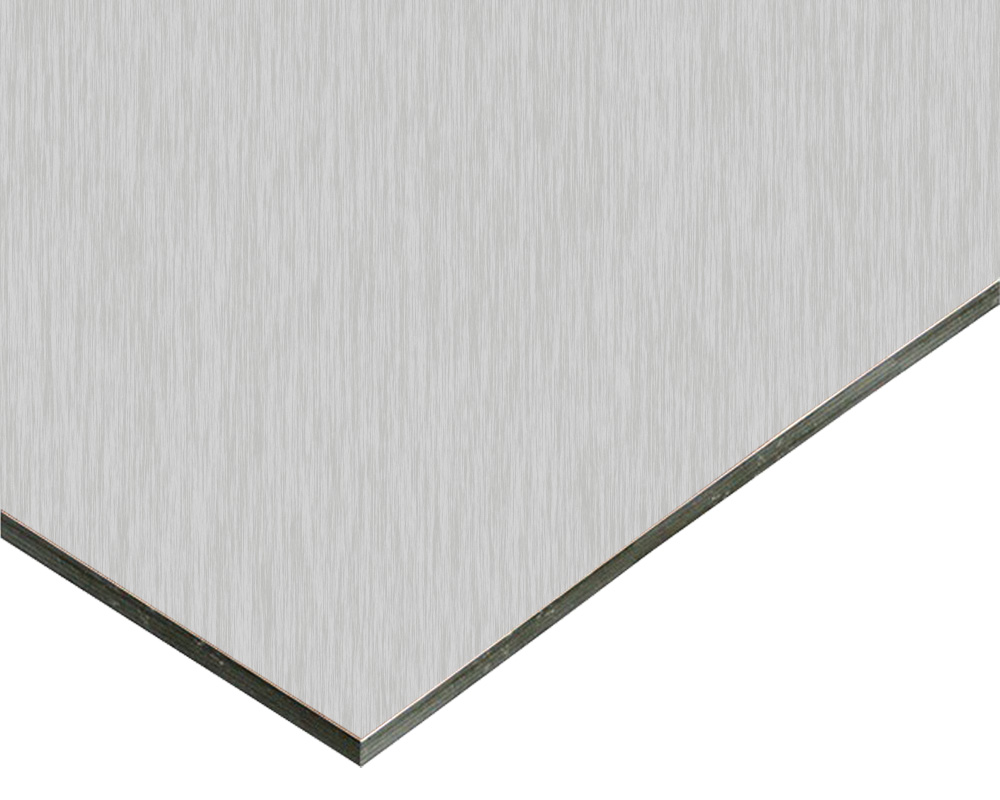

Aluminium Brushed composite panel
The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is used the brush finish coils, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated anti-corrosive paints.
Aluminum composite panel structure
Parameter
Specification:
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 6000mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.2mm, 0.3mmare recommended
Raw Materials:
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: Brushed color

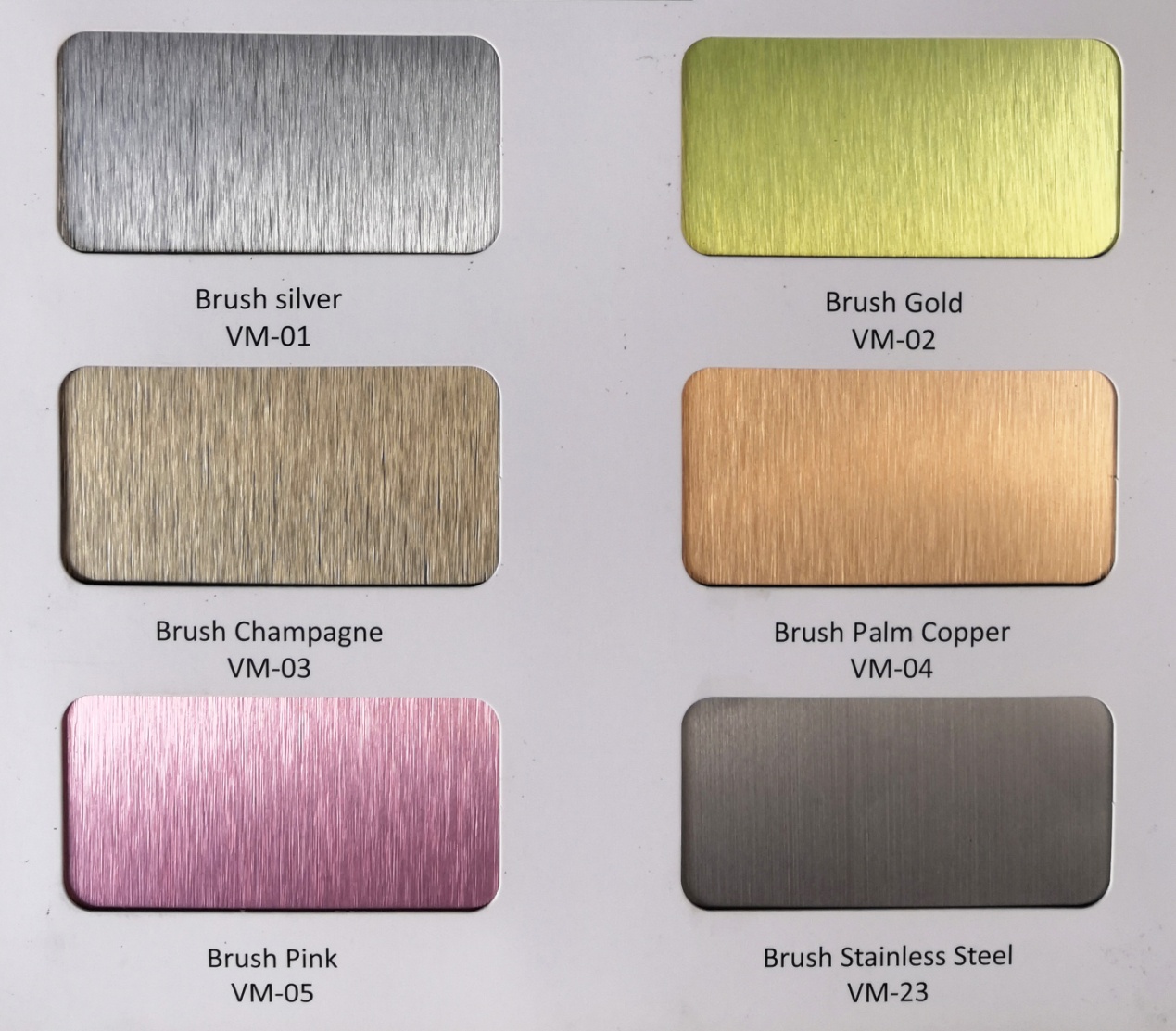

Colors:
1, There are many kinds of Brushed color
Features:
A) Various uniform colors.
B) Bright ,elegant and magnificent, fitfor various designs.
C) Kynar 500 PVDF resin feature strong chemical resistance, unique colors can be easily maintained.
Advantage (Why choose us?):
A) Manufacturer with more than 10 years producing experience
B)You can find colors alternative in Acebond with small quantity.
C) Very fast delivery time
OEM SERVICE PROCESS:
1. Negotiation
We need to talk about the project requirements, to determine the order details.
2.R&D Samples
In order to ensure your interest, we will provide you samples. R & D and production of samples takes about 3-5 days by air delivered to you.
3. Material Procurement
If the sample is satisfied, We will take 12-18 days for production preparation, will be strictly in accordance with the need to control the quality of raw materials.
4. Mass Production
ISO9001:2000 & ISO14001 Standardized and automated production lines to ensure product quality and accurate delivery, Generally will be completed in 10 days.
5. Inspection &Traceability
We will ship the product before testing, photographed and retained samples for quality traceability.
6. We work with major shipping companies more than 10 years, will give you a reasonable freight and best service
Aluminium Brushed composite panel
The panel comprises a polyethylene core between two aluminum skin, the LDPE core's thickness and alloy's width can be designed according to customers requirement, the front surface is used the brush finish coils, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreatment or coated anti-corrosive paints.
Aluminum composite panel structure
Parameter
Specification:
Panel thickness: 1-10mm, 3mm-4mm is recommended
Standard Size: 1220*2440mm (W*L)
Panel width: max to 2000mm, 1220mm, 1250mm, 1300mm, are recommended
Panel length: max to 6000mm, 2440mm, 3050mm, 4050mm, 5500mm are recommended
Aluminum thickness: 0.2mm, 0.3mmare recommended
Raw Materials:
1, Aluminum panel material: Alloy 1100, 3003, 3105, etc
2, PE core material: poison-free low-density PE
3, Coating: Brushed color
Colors:
1, There are many kinds of Brushed color
Features:
A) Various uniform colors.
B) Bright ,elegant and magnificent, fitfor various designs.
C) Kynar 500 PVDF resin feature strong chemical resistance, unique colors can be easily maintained.
Advantage (Why choose us?):
A) Manufacturer with more than 10 years producing experience
B)You can find colors alternative in Acebond with small quantity.
C) Very fast delivery time
OEM SERVICE PROCESS:
1. Negotiation
We need to talk about the project requirements, to determine the order details.
2.R&D Samples
In order to ensure your interest, we will provide you samples. R & D and production of samples takes about 3-5 days by air delivered to you.
3. Material Procurement
If the sample is satisfied, We will take 12-18 days for production preparation, will be strictly in accordance with the need to control the quality of raw materials.
4. Mass Production
ISO9001:2000 & ISO14001 Standardized and automated production lines to ensure product quality and accurate delivery, Generally will be completed in 10 days.
5. Inspection &Traceability
We will ship the product before testing, photographed and retained samples for quality traceability.
6. We work with major shipping companies more than 10 years, will give you a reasonable freight and best service
1) Direction of Panel:
Metallic and mica coatings have a reflective or pearlescent finish, due to the millions of microscopic aluminum or mica particles suspended in the paint mix. These particles are oriented in the longitudinal direction during the coil coating process. During production, arrows and a production number are printed on the back surface of the panels. Directional arrows are also printed on the strippable protective film. Consequently, it is important when fabricating and installing panels with metallic or mica coatings to take this orientation into account. Panel directionality must be maintained in order to avoid shading differences between adjacent panels and must be taken into account when making the optimization calculations.
2) Protective film:
The film protects the paint finish during fabrication and installation. It should, however,be removed as soon as possible after installation of the panel on site, especially in the case of panels exposed to sunlight and weather. The protective film should only remain temporarily on the panels. Arrows are printed on the film to indicate the direction of coil-coating (important for metallic finishes). Opaque film 80 μ thick with ultraviolet barrier is used on PVDF.
3) Grooving:
When aluminium-plastic panel is under edge fold construction, it shall be grooving at edge fold section and it may open V-groove and U-groove, etc. according to edge fold requirement, several typical grooving ways see figure C.l. It shall make use of Special grooving machinery for aluminium-plastic panel to ensure grooving depth is not damage the opposite aluminium material and it shall be left with 0.3 mm thick plastic layer. It may adopt reinforcing measures as bordered rib, etc. as it is required at grooving section. Unit is mm 4) Lacquer Cleaning Information:
Cleaning Solution:
Cleaning intervals depend on local environmental conditions and the resulting amount of soiling. Surface should be cleaned either manually or with a suitable cleaning device from top to bottom.
Please do not use any abrasive pads on lacquered surfaces. We recommend that the cleaning agent be tried on an unobtrusive part of the object to be cleaned to check whether the surface is affected.
Do not clean hot surface(>40) as the quick drying process may cause blemishes.
Main Procedures of cleaning of Stove-lacquered surface
1.use clean water to wash the lacquered panel surface;
2.use soft cloth which soaked with cleaning agent to wipe the panel surface lightly;
3.use a lot of water to wash away the dirt on the panel surface;
4.check the panel surface carefully, use cleaning agent to clean the remaining dirt area;
5.use a lot of water to wash all panel surface till all panel surface without any remaining cleaning agent.
Note : An increased expenditure of cleaning may be necessary in case of very dirty/soiled area or area which was not cleaned for a long period. In the case, the time of reaction/agitation or stronger mix/dosage of the cleaning agent may be necessary. An increased of force during the cleaning process is not recommend because of a high risk of damages (e.g. changed of degree of brightness/gloss)
Please do not use any powerful alkaline cleaning agents such as potassium hydroxide, sodium carbonate or caustic soda, or any powerful acidic products or heavily abrasive scouring agents or lacquer-dissolving cleaning agents.
